Product Describe：

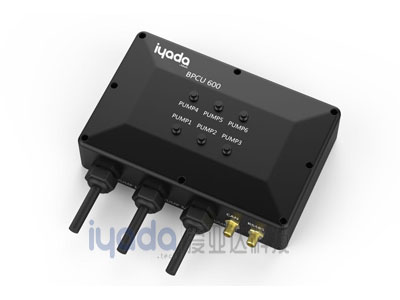

The control unit of bilge pump collects the operation information of bilge pump, uploads the information to monitor or relocate equipment through the interface of CAN and RS485, monitors the bilge inflow situation from time to time and clears bilge water automatically or manually and alarms relevant personnel to ensure navigation safety.
Product Feature：
1. Support NMEA2000, MODBUS-RTU protocol.
2. Compatible with different bilge pump and float switch detection.
3. Supporting the detection of pump operation, blockage and faults.
4. Inspection pump idle stop working.
5. You can work without communication.
6. Support 6-way bilge pump and float switch.
7. Thermal protection.
Product Parameters：
| Operating Voltage： | 9V DC to 36V DC, (Rated 12V DC) |
| Rated power： | 2W |
| Input voltage of bilge pump： | 12 V DC/24 V DC |
| Output current of bilge pump： | 15A (MAX) |
| Float switch interface： | 6pcs |
| Bottom Pump Interface： | 6pcs |
| Safety Standard： | EN60950-1 |
| EMC Standards： | EN61000-6-2, EN61000-6-4, IEC 60945, IEC 60533 |
| Protection Level： | IP 23 |
| Vibration： | +1 mm @ (2Hz ~ 13.2Hz), +0.7 g @ (13.2Hz ~ 100Hz) |
| Working temperature： | - 25 °C to 55 °C |
| Storage temperature-humidity： | - 40°C ~70°C , ≤95% RH, No Condensation |
| Installation： | Wall-mounted |
