Product Describe：

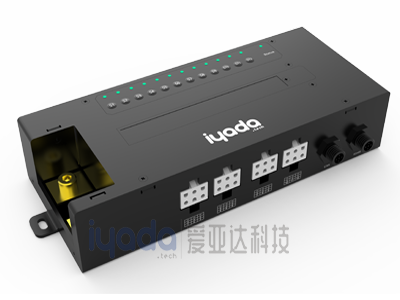

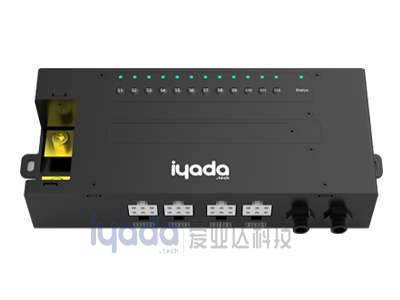

Intelligent DC distribution control unit distributes DC power automatically. Real-time information such as voltage,current, switching status, insurance status and protection are uploaded to monitor or designated equipment through CAN or RS485interface, which can be controlled remotely and manually.
Product Feature：
1. Support NMEA2000 or MODBUS-RTU protocol.
2. Supporting 1-way DC input and 12-way DC output.
3. Real-time detection of various states and fault information of voltage, current and switch.
4. Support remote (with screen or key switch) and manual control.
5. Over-current, short-circuit and under-voltage protection, over-voltage and over-temperature alarm.
6. With bypass control control.
7. Support 2-way output parallel (optional).
8. Small size, simple installation and maintenance.
Product Parameters：
| Input voltage： | DC power supply (12V DC/24VDC) |
| Maximum input current： | 122 A |
| Output routes： | 12 routes |
| Maximum output current： | 11A/circuit |
| Protection： | fuse (DEFAULT '5A), software |
| Protection Function： | Overcurrent, Short Circuit, Undervoltage |
| LED Normal Input Instruction： | Green |
| LED Alarm Protection Instruction： | Red |
| Working temperature： | - 20 °C to 55 °C |
| Storage temperature-humidity： | - 30°C ~70°C , ≤95% RH, No Condensation |
| Heat Dissipation： | Natural Cooling |
| Size (WxHxD)： | 245.0 mm x 105.0 mm x 52.0 mm |
| Installation mode： | Wall mounted installation |
