Product Describe：

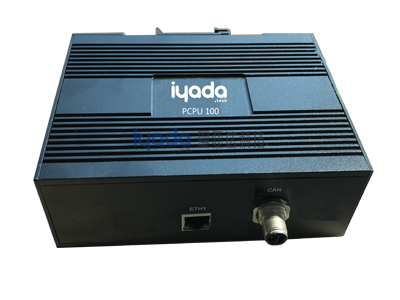

Protocol Conversion Processing Unit receives data from each device on the bus through the CAN interface, processes and displays it on the monitor and can also control,the device and display the data integratively.
Product Feature：
1. Support NMEA2000, Network Protocol.
2. Support One CAN and One Network Interface.
Product Parameters：
| Operating Voltage： | 9V DC to 36V DC, (Rated 12V DC) |
| Rated power： | 2W |
| Safety Standard： | EN60950-1 |
| EMC Standards： | EN61000-6-2, EN61000-6-3, IEC60945, IEC60533 |
| Protection Level： | IP 23 |
| Vibration： | +1 mm@ (2Hz ~ 13.2Hz), +0.7 g@ (13.2Hz ~ 100Hz) |
| Working temperature： | - 25 °C to 55 °C |
| Storage temperature-humidity： | - 40°C ~70°C , ≤95% RH, No Condensation |
| Dimension (WxHxD)： | 120.0 mm x 30.0 mm x 120.0 mm |
| Weight： | 0.5 kg |
| Installation mode： | Hanging Type |
