Product Describe：
This product is an integrated power management control panel, featuring AC and DC power input, display, and monitoring functions. It is suitable for managing power systems in mobile or stationary locations such as ships and RVs. The panel supports 240V AC shore power input, generator power supply, polarity detection, and provides 24V and 12V DC power output, making it convenient for powering various devices.
Product Feature：
Multi-Power Input Management: Supports 240V AC shore power and generator input, with automatic or manual switching
Polarity Detection Protection: Equipped with a "CORRECT POLARITY" indicator light to ensure correct AC wiring and enhance safety
Dual DC Output System: Integrated 24V and 12V DC power panels to meet the needs of devices with different voltage requirements
Clear Status Display: Features a power input status display interface, clearly showing the current power source (shore power/generator)
Compact and Integrated Structure: Rational panel layout with concentrated functions, convenient for installation and operation
Product Parameters：
1. AC Input Parameters
Shore Power Input (SHORE 1, SHORE 2):
Rated Voltage: 240V AC, single phase
Voltage Range: 200V - 250V AC
Rated Frequency: 50/60 Hz
Maximum Input Current: 32A (optional)
Generator Input (GEN):
Rated Voltage: 240V AC, single phase
Connection Capacity: Matches generator output (usually same as shore power specifications)
2. DC Output Parameters
24V DC Panel:
Rated Output Voltage: 24V DC
Voltage Regulation Range: 22V - 28V DC
Total Output Capacity: Typical 30A (customizable to 60A/100A as needed)
Number of Output Circuits: Multiple circuits with independent fuses or circuit breakers (e.g., 6-12 circuits)
12V DC Panel:
Rated Output Voltage: 12V DC
Voltage Regulation Range: 11V - 14.5V DC
Total Output Capacity: Typical 20A (customizable as needed)
Number of Output Circuits: Multiple circuits with independent fuses or circuit breakers (e.g., 8-16 circuits)
3. Control and Display Functions
Display/Indicator Lights:
Power Mode Display: Clearly indicates operating status of "SHORE" (shore power) and "GEN" (generator).
Polarity Status Indicator: "CORRECT POLARITY" light (green steady means correct).
Optional voltage/current digital display.
Control Components:
Main power switch
AC input selection switch (AUTO/OFF/GEN)
Independent switches or circuit breakers for each DC circuit
4. Physical and General Parameters
Enclosure Material: Flame-retardant ABS engineering plastic or aluminum alloy
Installation Method: Flush-mounted panel installation
Panel Dimensions: Specific dimensions depend on model
Operating Temperature: -20°C to 55°C
Storage Temperature: -30°C to 70°C
5. Protection Functions
AC Input: Overvoltage, undervoltage, overcurrent, reverse polarity protection.
DC Output: Overload and short circuit protection for each circuit (fuses or circuit breakers).
System: Overall ground fault monitoring (optional).

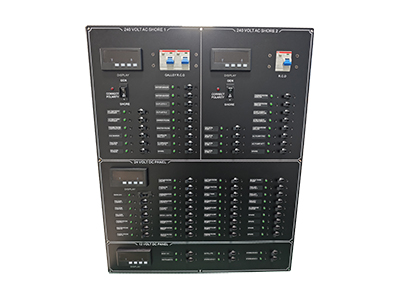

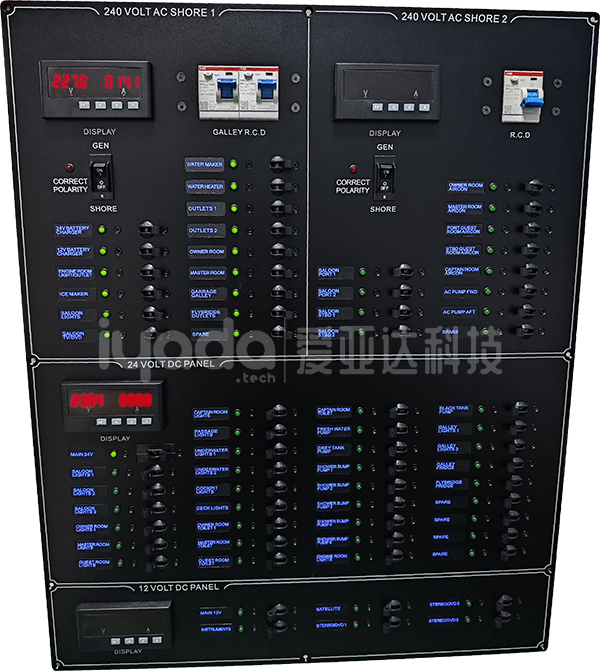

Product Picture：
