Product Describe：
The IYADA Marine Smart Control Panel is a custom-built 12V DC central management unit designed for luxury yachts. It integrates navigation, communication, lighting, safety, and convenience equipment into one compact, elegantly engineered interface. Built under the motto “BUILT CAREFULLY”, every detail is rigorously tested to withstand high humidity, salt spray, vibration, and temperature extremes, ensuring reliable and intuitive vessel control in the harshest marine environments.
Product Feature：
1. All‑in‑One Integration
Centralized control for GPS, media system, VHF radio, bilge pump, seacock monitor, 12V sockets, and more – eliminating multiple scattered switch panels.
2. Intelligent Lighting Management
Dedicated switches for navigation / anchor lights (meeting COLREGs).
Independent underwater LED light control for nighttime ambiance.
Soft courtesy lights for safe deck movement after dark.
3. Real‑Time Status Indication
Individual green LED indicators show active circuits.
Built‑in voltmeter monitors battery health with low‑voltage audible alarm.
4. Safety‑First Design
Each output protected by a resettable circuit breaker (auto‑trip on overload).
Rear wiring harness uses flame‑retardant sleeving and double insulation to prevent short‑circuit fires.
Emergency master kill switch instantly cuts all loads.
5. Rugged Marine Construction
Aviation‑grade aluminum front panel with anodized anti‑corrosion finish.
Silicone‑sealed, light‑guided buttons rated for >100,000 actuations.
Fully potted PCB for moisture and vibration resistance – meets marine vibration standards.
6. User‑Friendly Operation
Tactile feedback buttons, operable even with gloves.
One‑touch “Night Mode” dims all backlights to preserve night vision.
Custom laser‑engraved labels (permanent, fade‑proof) available for any layout.
Product Parameters：
Parameter: Rating
Operating Voltage: 12V DC
Max Total Load: 30A continuous / 50A peak
Operating Temperature: –20°C ~ +70°C
Ingress Protection: IP65 (front panel – dustproof and splash‑proof)
Mounting: Standard flush‑mount (custom cut‑out dimensions available)
Terminals: Plug‑in screw terminals with anti‑loosening locks
Backlight: Adjustable blue/white LED with brightness memory

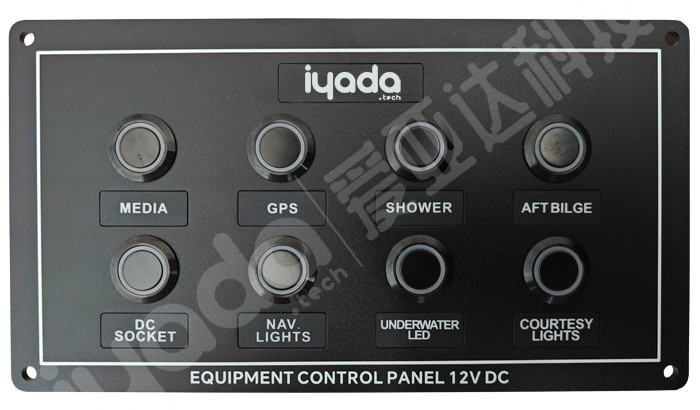

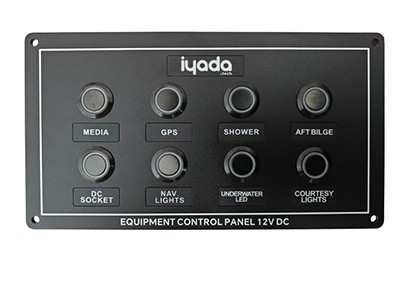

Product Picture：
