Product Describe：
This control panel is an integrated operating system specifically designed for yachts, allowing centralized management of the yacht's key mechanical and electrical equipment. Its intuitive button layout enables users to easily control important functions such as the engine, thrusters, pump systems, and windlass, providing multi-control on a single screen and enhancing operational efficiency and safety.
Product Feature：
1. Highly Integrated: Centralizes the control of propulsion, pump sets, power, and other systems on a single panel, reducing the complexity of onboard wiring.
2. Intuitive Operation: Clear labeling and well-defined key areas make it easy for the operator to quickly identify and operate controls.
3. Comprehensive Functions: Covers key ship functions such as propulsion, heading stabilization, drainage, and anchoring, supporting multiple operation modes.
4. High Reliability: Suitable for the shipboard environment, with certain moisture-proof and vibration-resistant capabilities.
5. Easy Maintenance: Modular design facilitates troubleshooting and component replacement.
Product Parameters：
1. System Parameters
Power Supply Voltage: 12/24V DC
Operating Temperature: -10℃ ~ 60℃
2. Interface Definition
Main Control Unit: Supports multiple relay outputs
Sensor Input: Supports temperature, humidity, liquid level, and pressure signals
Output Load: Maximum 10A per channel, with short-circuit protection
3. Installation Instructions
Panel Size: Custom (opening dimensions attached in drawings)
Installation Location: Driver's console main control area
Wiring Identification: See the actual device, all marked for easy identification by customers
4. Fault Diagnosis
Indicator Light Status Description (solid/flash/off corresponding to fault type)
5. Button Function Description
ENGINE: Main engine start/stop control
PARALLEL: Dual-engine parallel mode switching
STERN THRUSTER: Stern thruster control (left/right/stop)
INVERTER: Inverter switch and status display
FWD PUMP / E/R PUMP / LAZ PUMP / SUMP PUMP: Controls the front compartment, engine room, aft compartment, and sewage pumps respectively
ANCHOR WINDLASS: Anchor winch up/down control
AMTEMPHOOP: Environmental monitoring display (temperature/humidity/pressure)
6. Basic Operating Procedures
. Turn on the main power switch
. Press ENGINE to start the engine
. Activate STERN THRUSTER for auxiliary steering as needed
. Use PUMP series buttons to control the corresponding pumps
. Use ANCHOR WINDLASS to lower/raise the anchor when docking

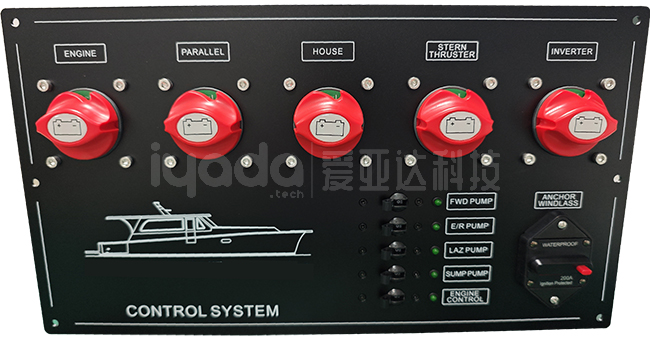

Product Picture：
