Ship System

Product Describe：

The marine AC distribution board with 2+12 main power supply and 2+6 auxiliary power inverter is a 220V AC main power distribution device specially designed for medium and large yachts or workboats. Its core function is to safely and reliably distribute and manage two types of main power supplies on board (shore power SHORE and generator power GEN) as well as inverter INVERTER power supply.

This distribution board monitors the status of input power supplies through clear meters (voltage V, current A), and distributes electric power to various high-power AC loads on board (such as kitchen appliances, water pumps, air conditioners, sockets, etc.) and important household equipment (such as refrigerators, ice makers) via multiple circuit breaker switches.

Designed in compliance with marine electrical specifications, it is equipped with essential protection and indication functions, serving as a core guarantee device for the safe operation of the yacht's power system.

Product Feature：

1. 1.Modular Structure Design

2. The production line adopts a standard modular framework. The main power input module, instrument module, inverter module, and multiple shunt circuit breaker modules can be independently assembled and tested, facilitating production organization as well as later maintenance and replacement.

3. 2.Rigorous Electrical Safety Technology

4. Key process points such as busbar installation, circuit breaker torque application, and terminal crimping are strictly controlled to ensure the reliability of high-current paths and low contact resistance. A comprehensive insulation resistance test and dielectric strength test are carried out after assembly.

5. 3.Marine Environment Adaptability

6. The cabinet is made of corrosion-resistant materials (e.g., spray-coated galvanized steel sheet or aluminum). Internal components are selected from marine-grade or industrial-grade products, and the production line includes moisture-proof and mildew-proof treatment processes.

7. 4.Clear and Intuitive Panel Layout

8. Functional areas are clearly demarcated (main power distribution area and inverter power distribution area). The labels adopt internationally universal symbols and English, and the status of indicator lights is easy to identify at a glance, facilitating operation and recognition by crew members and managers.

9. 5.Flexible Configuration Capability

10. Based on the standard framework, the number of circuit breakers, current ratings, and load labels can be flexibly adjusted to meet the equipment list requirements of different ship types.

Product Parameters：

Model:

Shore Power/Generator Main Circuit: 2 Inputs + 12 Outputs; Inverter Circuit: 2 Inputs + 6 Outputs

Main Input Power Supply:

2-channel main power supply: shore power (SHORE), generator (GEN); AC 220V/50Hz (or 230V/60Hz)

Auxiliary Input Power Supply:

1-channel inverter input (INVERTER INPUT); AC 220V

Power Indication & Monitoring:

Power indicator light, voltmeter (V), ammeter (A), backlight (BACK LIGHT)

Main Power Distribution Output Circuits:

12 circuits, controlled by marine circuit breakers

Inverter Power Distribution Output Circuits:

6 circuits, controlled by marine circuit breakers

Switch Type:

Marine thermal-magnetic circuit breaker (single-pole or double-pole); integrated with switching, overload and short-circuit protection functions

Rated Current of Circuit Breaker:

Configurable according to load requirements; typical range: 6A, 10A, 16A, 20A, 32A, etc.

Panel Material:

Anodized frosted black aluminum alloy

Operating Temperature:

0℃ ~ +55℃ (for cabin installation)

Cutout Dimensions:

Customizable per customer requirements

Mounting Method:

Flush-mounted or wall-mounted (subject to cabinet design)

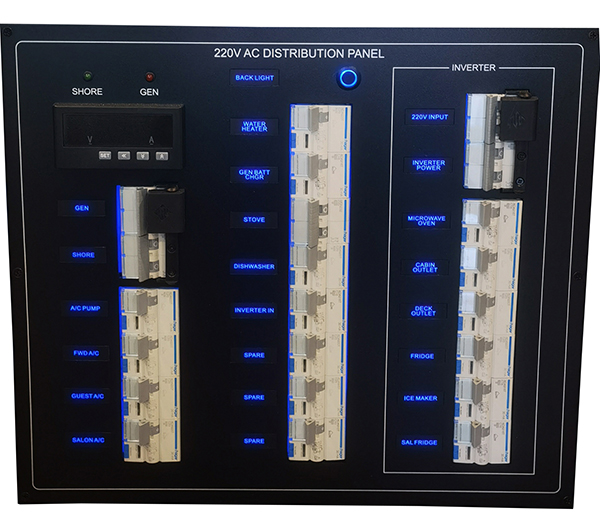

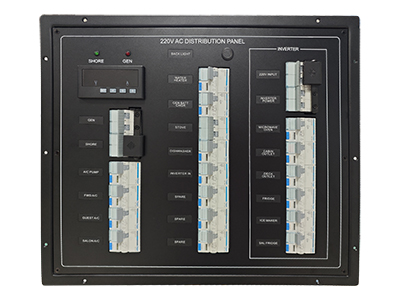

Product Picture：
