Product Describe：
DC 12V 24 V combined distribution panel is a manually controlled DC main distribution equipment with independent digital display meter on the panel.
Product Feature：
1. Real time display of voltage and current parameters;
2. The product has the functions of load over-current, short-circuit protection switch status LED indication, etc;
3. The panel supports customized name / backlight;
Product Parameters：
System input: DC 12V/24V
Maximum input current: 100A (optional)
Output branch: 18 branches (optional)
Maximum shunt output current: 25A (optional)
Circuit breaker Specification: 10A/15A/20A/25A/30A (optional)
Protection function: over current, short circuit
Load type: Resistive, sensitive
Output indicator: 19 green leds
Operating temperature: -25℃55℃
Storage temperature: 25℃~70℃
Relative humidity: <95%RH, no condensation
Heat dissipation: Natural cooling
Size (WxH) : (customizable)
Installation: Embedded, screw fixed

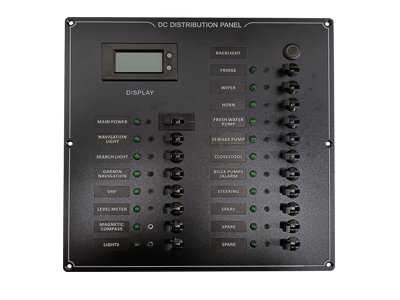

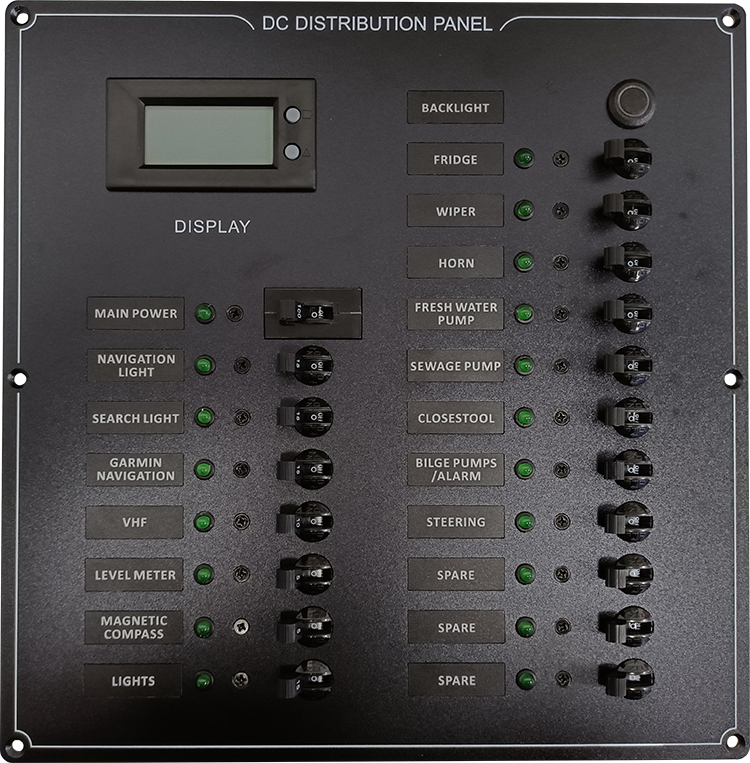

Product pictures：
