Product Describe：
It can customize overseas large-scale 12V DC distribution switch board, and can choose backlight and number of channels freely.
Product Feature：
1. Real time display of voltage and current parameters;
2. The product has the functions of load over-current, short-circuit protection switch status LED indication, etc;
3. The number of branches can be expanded and customized with customers;
Product Parameters：
System input: DC
Input rated voltage: DC12V
Maximum input current: 50A (optional)
Output shunt: (optional)
Shunt maximum output current: 40A (optional)
Main circuit breaker specification: AC 100A (optional)
Specification of shunt circuit breaker: 5A / 6A / 10A / 15A / 20a25a / 30A / 40A (optional)
Protection function: Over current, short circuit
Load type: Resistance and Sensibility
Input indication: The AC board has red LED / green LED
Output indication: AC board is green LED
Operating temperature: - 25℃55℃
Storage temperature: 25℃~70℃
Relative humidity: < 95% RH, non condensing
Heat dissipation mode: Natural cooling
Dimension (WXH): (customizable)
Installation method: Embedded

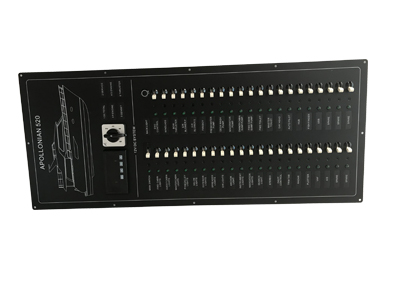

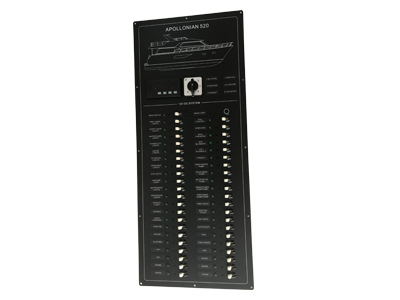

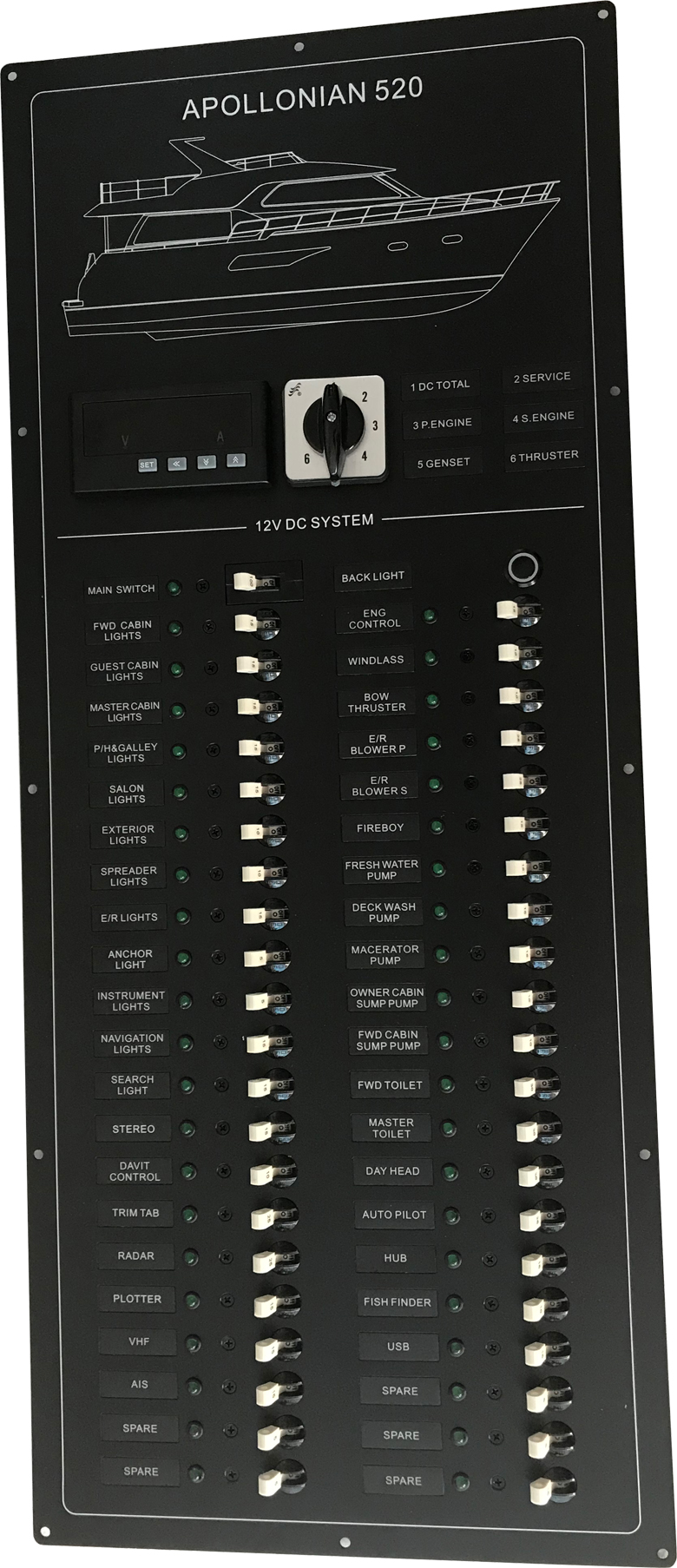

Product pictures：
