Product Describe：
The switch board of 8-way rocker is a manually controlled power distribution panel, which is convenient for simple wiring and suitable for yachts, ships and RV【 Note: all wires are marine cables】
Product Parameters：
System input: DC
Input rated voltage: 12V /24V
Output shunt: 8 way (customizable expansion)
Shunt maximum output current: 16A (optional)
Specification of shunt circuit breaker: 5A / 10A / 16A (optional)
Protection function: Over current, short circuit
Load type: Resistance and Sensibility
Output indication: The rocker switch has its own LED (red by default), and the color is optional
Silk screen printing: Optional screen printing
Operating temperature: - 25℃55℃
Storage temperature: 25℃~70℃
Relative humidity: < 95% RH, non condensing
Heat dissipation mode: Natural cooling
Dimension (WXH): customized
Installation method: Embedded, lock screw fixed

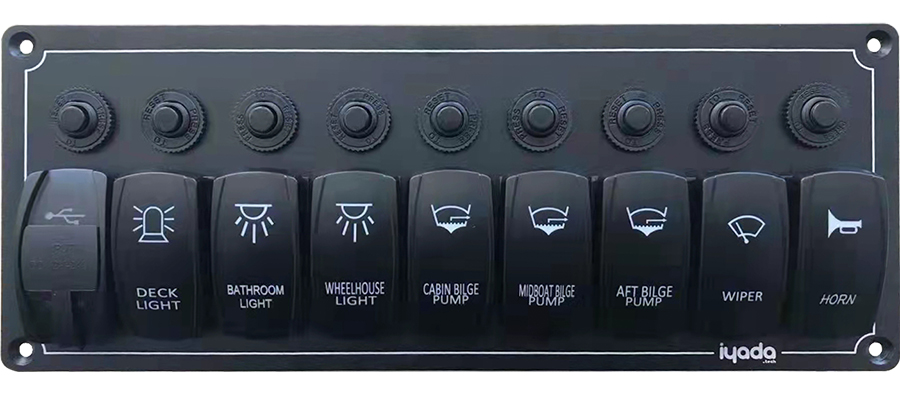

Product pictures：
