Product Describe：
Large size AC 110V distribution switch board can be customized overseas, and backlight and circuit number can be selected freely.
Product Feature：
1. Real time display of voltage and current parameters;
2. The product has the functions of load over-current, short-circuit protection switch status LED indication, etc;
3. The number of branches can be expanded and customized with customers;
Product Parameters：
System input: AC
Input rated voltage: AC110V
Maximum input current: 100A (optional)
Output shunt: （ (optional)
Shunt maximum output current: 40A (optional)
Main circuit breaker specification: AC 100A (optional)
Specification of shunt circuit breaker: 5A / 6A / 10A / 15A / 20a25a / 30A / 40A (optional)
Protection function: Over current, short circuit
Load type: Resistance and Sensibility
Input indication: The AC board has red LED / green LED
Output indication: AC board is green LED
Operating temperature: - 25℃55℃
Storage temperature: 25℃~70℃
Relative humidity: < 95% RH, non condensing
Heat dissipation mode: Natural cooling
Dimension (WXH): (customizable)
Installation method: Embedded

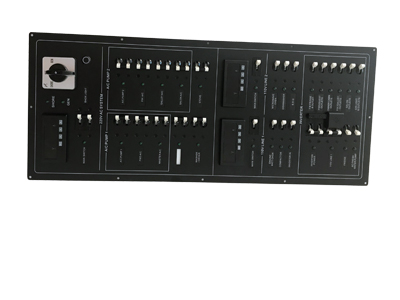

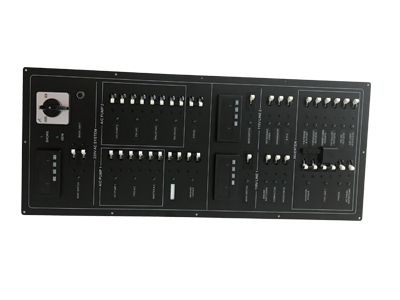

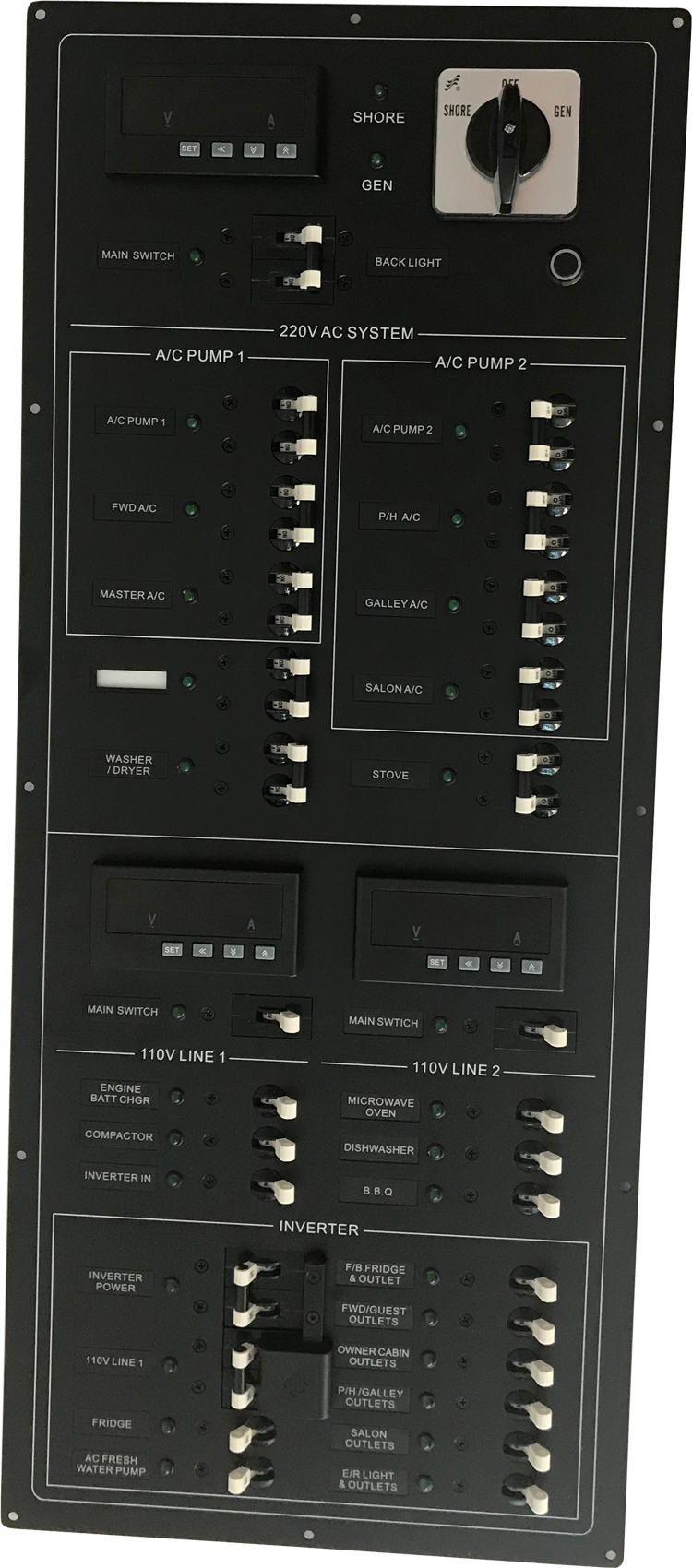

Product pictures：
