Product Describe：
This product is a standardized DC distribution control panel specifically designed for luxury yachts, medium and small commercial vessels, and
special ships. It utilizes a 24V DC system and integrates dual power source switching, real-time power monitoring, multi-circuit breaker protection,
and centralized audible and visual alarm functions.The panel is not only responsible for the power distribution and management of key equipment
across the entire vessel(such as navigation systems, bilge pumps, fire alarm systems, lighting, ventilation, etc.), but is also equipped with high-precision
digital volt/ammeters and an insulation monitoring system, ensuring the safe and stable operation of the ship's electrical system. Its sturdy industrial-grade
metal casing and modular design perfectly withstand the corrosion and vibration challenges of the marine environment.
Product Feature：Intelligent Management and Real-time Monitoring of Dual Power Sources: Equipped with dual high-precision digital volt/ammeters (V/A METER),
corresponding to the 1# and 2# batteries respectively, displaying voltage and current in real-time; the "Power supply indication" indicator light at the top
visually shows the current power supply status.
Comprehensive Insulation Monitoring and Safety Protection: Built-in insulation monitoring system (Insulation indication and Insulation test button).
When leakage or insulation degradation occurs in the system, the indicator lights will issue a warning. Daily inspections can be conducted via the test
button (Insulation test button), greatly enhancing electrical safety at sea.
Multi-circuit Modular Breaker Protection: Utilizes high-quality DC Miniature Circuit Breakers (MCB) to provide independent overload and short-circuit
protection for various core loads on the yacht (such as lighting, pumps, fans, navigation, etc.). Each circuit is equipped with clear English silk-screen labels
for easy identification and maintenance.
Comprehensive Audible and Visual Alarm Functions: The panel integrates various critical alarm indicator lights (such as Alarm relay, Fire alarm,
CO2 release alarm, Liquid level alarm board, etc.), using high-brightness LED beads to ensure that fault information can be captured immediately even
in complex environments.
User-friendly Operation and Backlight Design: Equipped with an independent backlight switch (Backlight switch) for convenient night watch operations;
adopts toggle/pull-type circuit breakers (similar in appearance to rocker switches) for clear tactile feedback and convenient operation.
Industrial-grade Anti-vibration and Anti-corrosion Design: The black sprayed metal panel has good corrosion resistance, moisture resistance, and
electromagnetic interference shielding capabilities, adapting to harsh working environments such as yacht engine rooms.
Product Parameters：
System Nominal Voltage: DC 24V (Display range is 20V-30V, depending on the specific battery bank)
Rated Working Current: The main circuit supports dual inputs (supports dual battery banks). The specific rated current can be customized according
to customer needs (typically single circuit max support 100A - 200A).
Monitoring Functions: 1# Battery real-time voltage/current monitoring, 2# Battery real-time voltage/current monitoring, real-time insulation resistance
monitoring and test button (Insulation test button).
Number of Protection Circuits: Standard multi-circuit (approximately 20-30 circuits visible in the image), including: Navigation lights, CO2 release alarm,
Liquid level alarm, various lighting (Upper/Lower cabin), Shaft/Bilge pumps (F.W pump, Black water pump), Sanitary facilities (E-toilet 1W/2W/3W),
Engine room fans, Steering gear fan, etc.
Indicator Light Type: High-brightness LEDs (Green indicator: Normal/Power supply status; Orange/Yellow indicator: Insulation alarm/Test status).
Panel Material: High-strength aluminum alloy/steel plate sprayed, scratch-resistant and wear-resistant surface.
Mounting Method: Flush panel mounting (fixed on the front of the panel).
Operating Ambient Temperature: -20℃ to +55℃
Protection Rating: IP54 and above (front splash-proof design, suitable for the interior of the cabin).

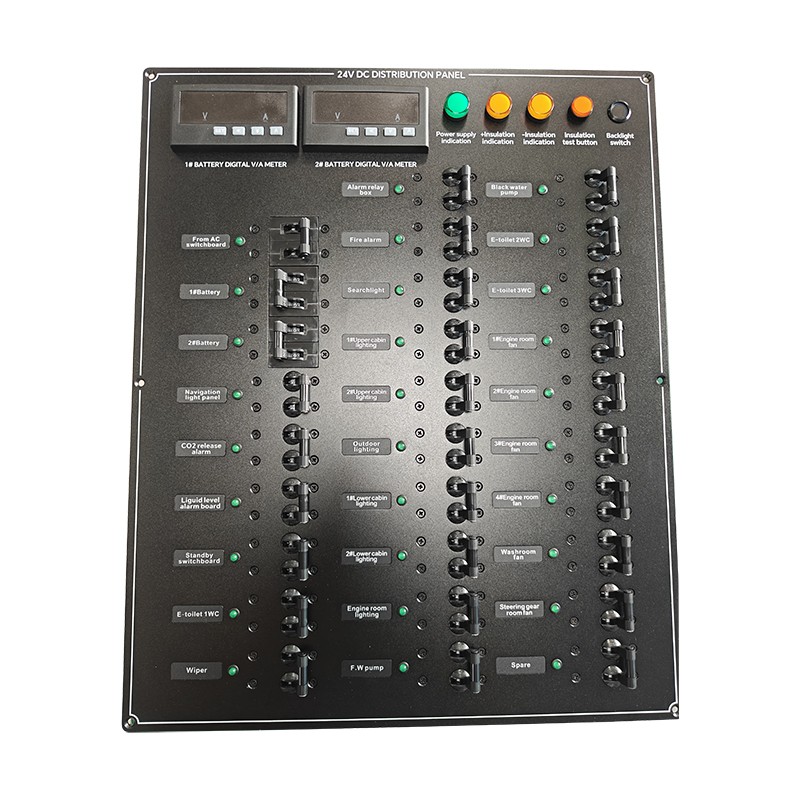

Product Picture：
