Product Describe：
This distribution panel is specifically designed for yachts, operating on a 12V DC supply. It features 3 main power inputs and 19 load outputs, integrating insulation monitoring, current detection, dual‑battery management, and power supply for multiple onboard devices. It is suitable for safe power distribution and control of lighting, navigation, communication, pumps, and other equipment.
Product Feature：
Insulation Monitoring
Real‑time monitoring of positive and negative pole insulation to ground, enhancing electrical safety.
Dual‑Battery System Management
Supports automatic/manual switching between service and reserve batteries, ensuring continuous power supply.
Multi‑Circuit Load Distribution
19 independent output circuits covering critical equipment such as navigation, lighting, pumps, and communication devices.
Integrated Instrumentation Display
Intuitive voltage and current readouts for easy monitoring of power status.
Marine‑Specific Design
High protection rating, suitable for humid, vibration‑prone marine environments.
Expandability and Compatibility
Supports connection to common onboard equipment including radar, AIS, GPS, and VHF.
Safety Alarm Functions
Equipped with insulation fault alarms and level alarms to enhance navigational safety.
Product Parameters：
| Input Voltage | 12V DC |
| Main Circuits | 3 channels (service battery, reserve battery, charger input) |
| Distribution Circuits | 19 channels (expandable) |
| Display Functions | Voltmeter, ammeter, insulation status indicator |
| Monitoring Functions | Insulation monitoring, current detection, level alarm |
| Protection Rating | IP56 (dustproof and water‑resistant, suitable for marine environments) |
| Applicable Equipment | VHF, GPS, radar, AIS, various pumps, lights, horns, etc. |
| Operating Temperature | -10°C ~ +55°C |
| Mounting Method | Wall‑mount / flush‑mount |

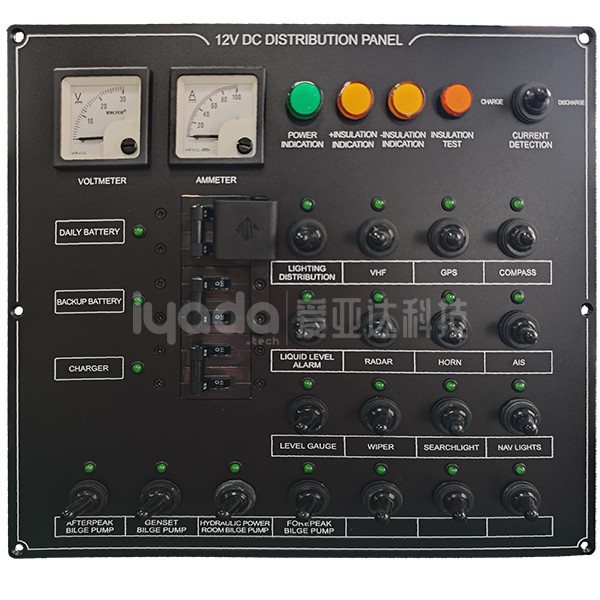

Product Picture：
