Product Describe：
The 11 way metal circular switch panel is a manually controlled power distribution panel, which can be equipped with a wiring board, which is simple and convenient for wiring, and is suitable for yachts, boats and motorhomes. [Note: All wires are marine cables].
Product Parameters：
System input: DC
Input rated voltage: 12V /24V
Output shunt: 11 way (customizable expansion)
Shunt maximum output current: 16A (optional)
Specification of shunt circuit breaker: 5A / 10A / 16A (optional)
Protection function: Over current, short circuit
Load type: Resistance and Sensibility
Output indication: The rocker switch has its own LED (Blue by default), and the color is optional
Silk screen printing: Optional screen printing
Operating temperature: - 25℃55℃
Storage temperature: 25℃~70℃
Relative humidity: < 95% RH, non condensing
Heat dissipation mode: Natural cooling
Dimension (WXH): customized
Installation method: Embedded, lock screw fixed

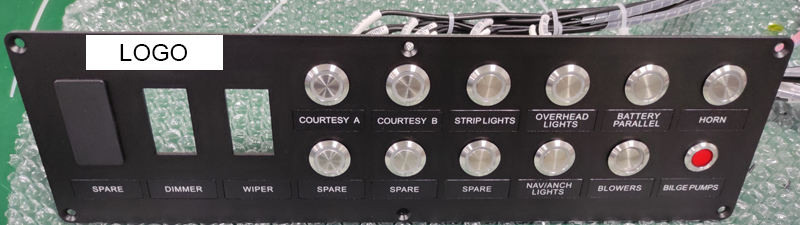

Product pictures：
