Product Describe：
Can be customized DC 12V/24V distribution switch board, free choice of backlight and road number.
Product Feature：
1. Real-time display of voltage and current parameters;
2. The product has functions such as load overcurrent and short circuit protection switch state LED indicator;
3. The panel supports backlight;
Product Parameters：
System input: DC
Rated input voltage: DC12V
Maximum input current: 100A (optional)
Output branches: (optional)
Maximum shunt output current: 40A (optional)
Main circuit breaker specifications: DC100A (optional)
Shunt circuit breaker specifications: 5A / 10A/ 15A/ 20A / 25A/ 30A / 40A (optional)
Protection function: Over current, short circuit
Load type: Resistive, sensitive
Input indicator: DC board has green LED
Output indicator: green LED
Operating temperature: -25℃55℃
Storage temperature: 25℃~70℃
Relative humidity: <95%RH, no condensation
Heat dissipation: Natural cooling
Size (WxH) : Customizable
Installation method: Embedded

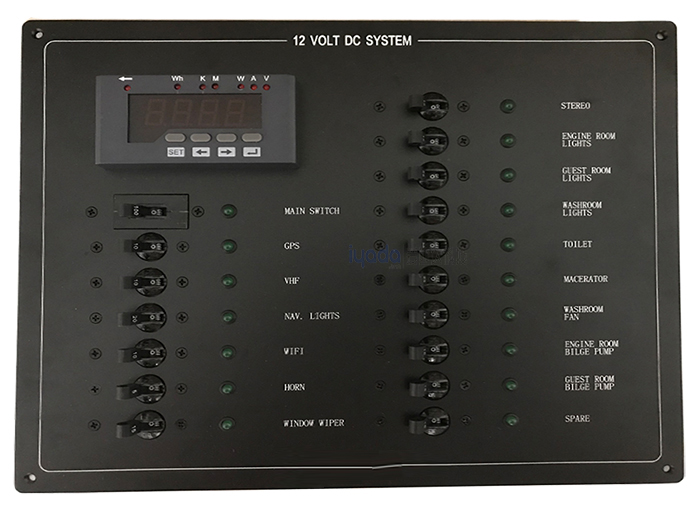

Product Picture：
